Welding shoe set MAX-18/-25
With our welding shoe sets for MAX-18/-25 you are optimally set up and always have everything close to hand. 3 different sets suitable to your application are available on request.
- All suitable welding shoes close to hand
- Included transport case comes with labeled sorting insert

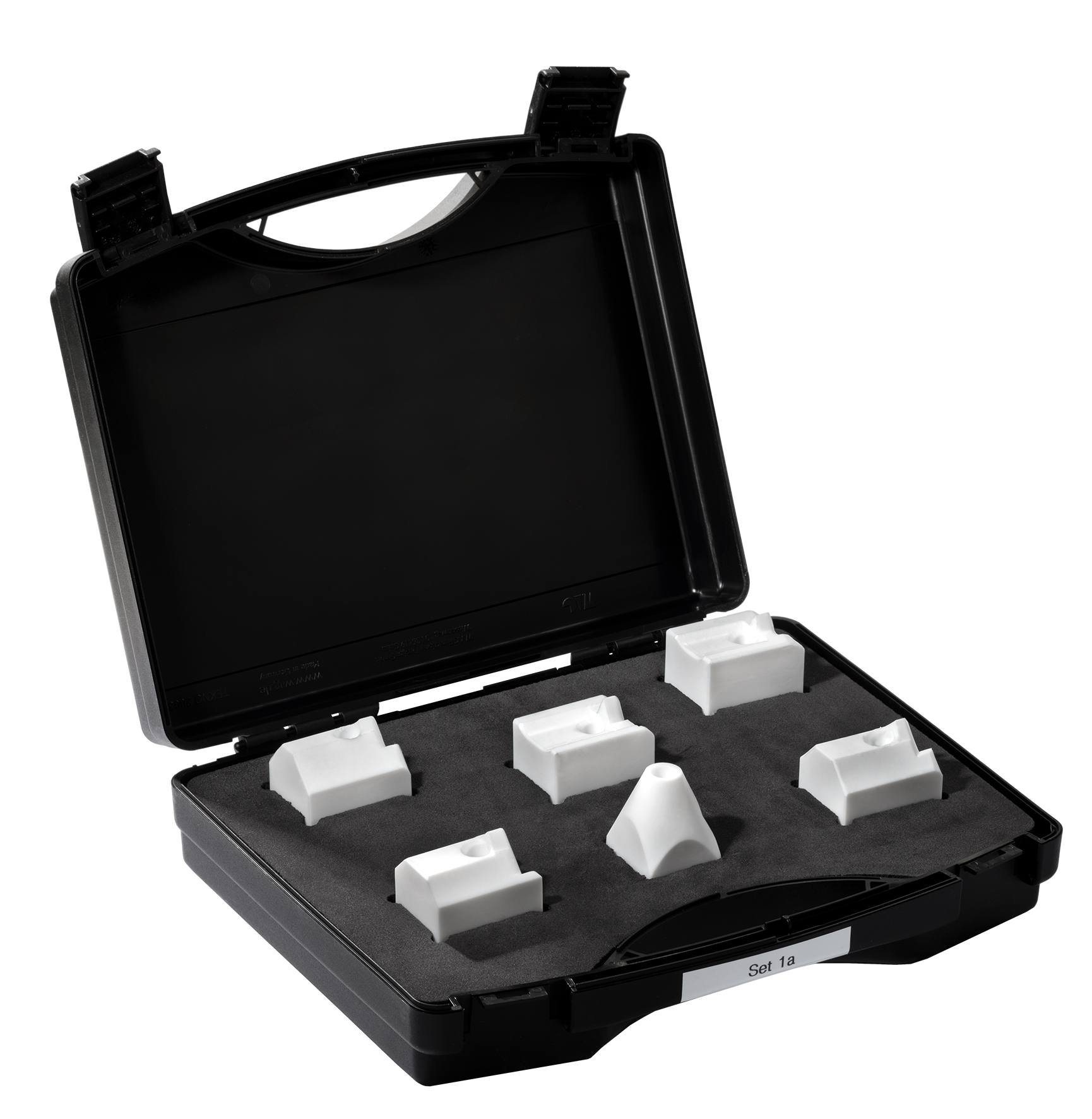

Welding shoe set 1a (container engineering, t=5-10mm, K07958):
- G07742: Welding shoe 42.0104K-40-30-M (fillet weld 5-6mm)
- G07673: Welding shoe 42.0106K-40-30-M (fillet weld 8mm)
- G07684: Welding shoe 42.0107K-40-30-M (fillet weld 10mm)
- G09721: Welding shoe 42.0106V-40-30-M (V-weld 6mm)
- G07748: Welding shoe 42.0110V-40-30-M (V-weld 10mm)
- K07628: Welding shoe 42.01D10-60°R-29×30-M (round shoe fillet dia 10mm)
- Transport case

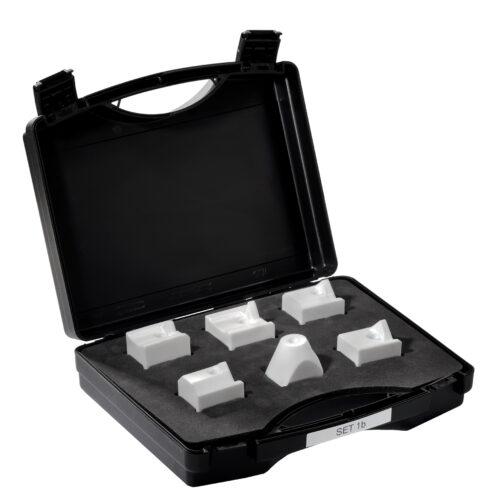

Welding shoe set 1b (container engineering, t=10-20mm, K07959):
- G07684: Welding shoe 42.0107K-40-30-M (fillet weld 10mm)
- G07708: Welding shoe 42.0111K-40-30-M (fillet weld 15mm)
- G10600: Welding shoe 42.0114K-40-30-M (fillet weld 20mm)
- G07748: Welding shoe 42.0110V-40-30-M (V-weld 10mm)
- G07997: Welding shoe 42.0115V-40-30-M (V-weld 15mm)
- K07162: Welding shoe 42.01D20-60°R-29×30-M (round shoe fillet dia 20mm)
- Transport case
Welding shoe set 1c (geo welding, K07960):
- G07680: Welding shoe 42.0125F-40-30-M (seam width 25mm)
- G08378: Welding shoe 42.0130F-40-40-M (seam width 30mm)
- G07707: Welding shoe 42.0111K-40-30-M (fillet weld 15mm)
- Transport case
